Order Class Reference

#include <order.h>

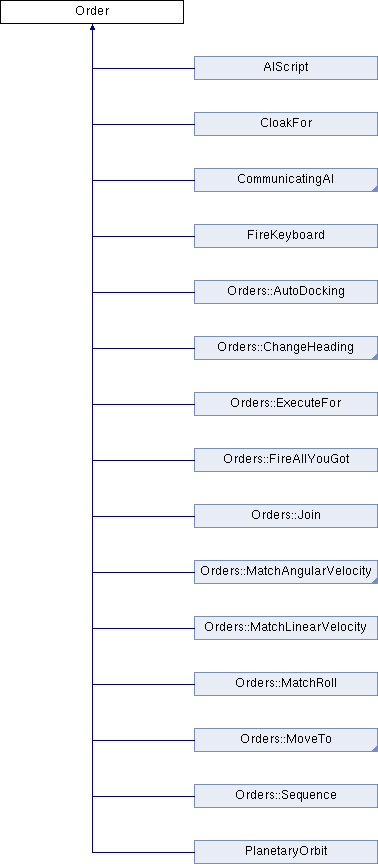

Inheritance diagram for Order:

Public Types
enum	ORDERTYPES {   MOVEMENT =1, FACING =2, WEAPON =4, CLOAKING =8,   ALLTYPES =(1|2|4|8) }
	The varieties of order types MOVEMENT,FACING, and WEAPON orders may not be mutually executed (lest one engine goes left, the other right) More...
enum	SUBORDERTYPES { SLOCATION =1, STARGET =2, SSELF =4 }

Public Member Functions
virtual void	ChooseTarget ()
	this function calls the destructor (needs to be overridden for python; More...
virtual bool	PursueTarget (Unit *, bool isleader)
void	ClearMessages ()
	clears the messasges of this order More...
	Order ()
	The default constructor setting everything to NULL and no dependency on order. More...
	Order (int type, int subtype)
	The constructor that specifies what order dependencies this order has. More...
virtual void	Destroy ()
	The virutal function that unrefs all memory then calls Destruct () which takes care of unreffing this or calling delete on this. More...
virtual void	Execute ()
	The function that gets called and executes all queued suborders. More...
Order *	queryType (unsigned int type)
	returns a pointer to the first order that may be bitwised ored with that type More...
Order *	queryAny (unsigned int type)
	returns a pointer to the first order that may be bitwise ored with any type More...
void	eraseType (unsigned int type)
	Erases all orders that bitwise OR with that type. More...
bool	AttachOrder (Unit *targets)
	Attaches a group of targets to this order (used for strategery-type games) More...
bool	AttachOrder (QVector target)
	Attaches a navigation point to this order. More...
bool	AttachSelfOrder (Unit *targets)
	Attaches a group (form up) to this order. More...
Order *	EnqueueOrder (Order *ord)
	Enqueues another order that will be executed (in parallel perhaps) when next void Execute() is called. More...
Order *	ReplaceOrder (Order *ord)
	Replaces the first order of that type in the order queue. More...
bool	Done ()
int	getType ()
int	getSubType ()
virtual void	SetParent (Unit *parent1)
	Sets the parent of this Unit. Any virtual functions must call this one. More...
Unit *	GetParent () const
virtual void	Communicate (const class CommunicationMessage &c)
	Sends a communication message from the Unit (encapulated in c) to this unit. More...
virtual void	ProcessCommMessage (class CommunicationMessage &c)
	processes a single message...generally called by the Messages() func More...
virtual void	ProcessCommunicationMessages (float CommRepsonseTime, bool RemoveMessageProcessed)
	responds (or does not) to certain messages in the message queue More...
Order *	findOrder (Order *ord)
	return pointer to order or NULL if not found More...
void	eraseOrder (Order *ord)
	erase that order from the list More...
Order *	EnqueueOrderFirst (Order *ord)
	enqueue order as first order More...
virtual olist_t *	getOrderList ()
	returns the orderlist (NULL for orders that haven't got any) More...
virtual void	AdjustRelationTo (Unit *un, float factor)
virtual std::string	getOrderDescription ()
Order *	findOrderList ()
	searches the suborders recursively for the first order that has an orderlist More...
std::string	createFullOrderDescription (int level=0)
void	setActionString (std::string astring)
std::string	getActionString ()
virtual float	getMood ()

Protected Member Functions
virtual	~Order ()
virtual void	Destructor ()
	changes the local relation of this unit to another...may inform superiors about "good" or bad! behavior depending on the AI More...

Protected Attributes
Unit *	parent
	The unit this order is attached to. More...
unsigned int	type
	The bit code (from ORDERTYPES) that this order is (for parallel execution) More...
unsigned int	subtype
bool	done
	Whether or not this order is done. More...
UnitContainer	group
	If this order applies to a group of units (as in form up with this group) More...
QVector	targetlocation
	If this order applies to a physical location in world space. More...
std::vector< Order * >	suborders
	The queue of suborders that will be executed in parallel according to bit code. More...
std::list< class CommunicationMessage * >	messagequeue
	a bunch of communications that have not been answered CommunicationMessages are actually containing reference to a nice Finite State Machine that can allow a player to have a reasonable conversation with an AI More...
std::string	actionstring

Detailed Description

Definition at line 44 of file order.h.

Member Enumeration Documentation

enum Order::ORDERTYPES

The varieties of order types MOVEMENT,FACING, and WEAPON orders may not be mutually executed (lest one engine goes left, the other right)

Enumerator
MOVEMENT
FACING
WEAPON
CLOAKING
ALLTYPES

Definition at line 84 of file order.h.

{MOVEMENT=1, FACING=2, WEAPON=4, CLOAKING=8, ALLTYPES=(1|2|4|8)};

enum Order::SUBORDERTYPES

Enumerator
SLOCATION
STARGET
SSELF

Definition at line 85 of file order.h.

{SLOCATION=1, STARGET=2, SSELF=4};

Constructor & Destructor Documentation

Order::~Order ( )

protectedvirtual

Definition at line 158 of file order.cpp.

References VSDESTRUCT1.

{
    VSDESTRUCT1
}

Order::Order ( )

inline

The default constructor setting everything to NULL and no dependency on order.

Definition at line 87 of file order.h.

References VSCONSTRUCT1.

Referenced by OrderFactory::newOrder().

        : parent(NULL),
          type(0),
          subtype(0),
          done(false),
          targetlocation( 0, 0, 0 )
    {
        VSCONSTRUCT1( 'O' )
    }

Order::Order ( int  type, int  subtype  )

inline

The constructor that specifies what order dependencies this order has.

Definition at line 97 of file order.h.

References VSCONSTRUCT1.

        : parent(NULL),
          type(type),
          subtype(subtype),
          done(false),
          targetlocation( 0, 0, 0 )
    {
        VSCONSTRUCT1( 'O' )
    }

Member Function Documentation

void Order::AdjustRelationTo ( Unit *  un, float  factor  )

virtual

Reimplemented in CommunicatingAI.

Definition at line 8 of file order_comm.cpp.

Referenced by CommunicatingAI::AdjustRelationTo(), Communicate(), and FireKeyboard::DoSpeechAndAni().

{
    //virtual stub function
}

bool Order::AttachOrder

(

Unit *

targets)

Attaches a group of targets to this order (used for strategery-type games)

Definition at line 118 of file order.cpp.

References AttachSelfOrder(), parent, SSELF, STARGET, subtype, and Unit::Target().

Referenced by Orders::AggressiveAI::AggressiveAI(), and PlanetaryOrbit::PlanetaryOrbit().

{
    if ( !(subtype&STARGET) ) {
        if (subtype&SSELF)
            return AttachSelfOrder( targets1 );              //can use attach order to do shit

        return false;
    }
    parent->Target( targets1 );
    return true;
}

bool Order::AttachOrder

(

QVector

target)

Attaches a navigation point to this order.

Definition at line 138 of file order.cpp.

References SLOCATION, subtype, and targetlocation.

{
    if ( !(subtype&SLOCATION) )
        return false;
    targetlocation = targetv;
    return true;
}

bool Order::AttachSelfOrder

(

Unit *

targets)

Attaches a group (form up) to this order.

Definition at line 130 of file order.cpp.

References group, UnitContainer::SetUnit(), SSELF, and subtype.

Referenced by AttachOrder(), PlanetaryOrbit::PlanetaryOrbit(), Orders::AggressiveAI::ProcessCurrentFgDirective(), Orders::FormUp::SetParent(), Orders::FormUpToOwner::SetParent(), and Orders::FaceDirection::SetParent().

{
    if ( !(subtype&SSELF) )
        return false;
    group.SetUnit( targets1 );
    return true;
}

virtual void Order::ChooseTarget ( )

inlinevirtual

this function calls the destructor (needs to be overridden for python;

Reimplemented in Orders::FireAt.

Definition at line 73 of file order.h.

Referenced by Pilot::adjustSpecificRelationship().

    {
        /*not implemented see fire.cpp*/
    }

void Order::ClearMessages

(

)

clears the messasges of this order

Definition at line 185 of file order.cpp.

References i, messagequeue, and suborders.

{
    unsigned int i;
    for (i = 0; i < suborders.size(); i++)
        suborders[i]->ClearMessages();
    {
        for (list< CommunicationMessage* >::iterator i = messagequeue.begin(); i != messagequeue.end(); i++)
            delete (*i);
    }
    messagequeue.clear();
}

void Order::Communicate ( const class CommunicationMessage &  c)

virtual

Sends a communication message from the Unit (encapulated in c) to this unit.

Definition at line 13 of file order_comm.cpp.

References _Universe, AdjustRelationTo(), FACING, CommunicationMessage::getDeltaRelation(), Unit::GetSerial(), getType(), UnitContainer::GetUnit(), VegaConfig::getVariable(), i, messagequeue, MOVEMENT, Universe::netLocked(), Network, parent, XMLSupport::parse_bool(), XMLSupport::parse_float(), NetServer::sendCommunication(), CommunicationMessage::sender, SERVER, suborders, vs_config, VSServer, WEAPON, and Universe::whichPlayerStarship().

Referenced by Unit::ApplyDamage(), BaseInterface::Room::Launch::Click(), BaseInterface::Room::Eject::Click(), DoDockingOps(), FireKeyboard::Execute(), GetMadAt(), HelpOut(), CommunicatingAI::InitiateContrabandSearch(), CommunicatingAI::ProcessCommMessage(), ProcessCommunicationMessages(), Orders::AggressiveAI::ProcessCurrentFgDirective(), RequestClearence(), ScoreKill(), CommunicatingAI::TerminateContrabandSearch(), TryDock(), and CommunicatingAI::UpdateContrabandSearch().

{
    if (this == NULL)
        return;
    if ( Network != NULL && !_Universe->netLocked() ) {
        //Stupid constness rules...
        int cp = _Universe->whichPlayerStarship( const_cast< UnitContainer& > (c.sender).GetUnit() );
        if (cp != -1 && parent && parent->GetSerial() != 0)
            Network[cp].communicationRequest( c, parent->GetSerial() );
        return;
    }
    int completed  = 0;
    unsigned int i = 0;
    CommunicationMessage *newC = new CommunicationMessage( c );
    for (i = 0; i < suborders.size(); i++)
        if ( ( completed&( (suborders[i])->getType()&(MOVEMENT|FACING|WEAPON) ) ) == 0 ) {
            (suborders[i])->Communicate( *newC );
            completed |= (suborders[i])->getType();
        }
    Unit *un;
    bool  already_communicated = false;
    for (list< CommunicationMessage* >::iterator ii = messagequeue.begin(); ii != messagequeue.end(); ii++) {
        un = (*ii)->sender.GetUnit();
        bool thisissender = ( un == newC->sender.GetUnit() );
        if (un == NULL || thisissender) {
            delete (*ii);
            if (thisissender) already_communicated = true;
            if ( ( ii = messagequeue.erase( ii ) ) == messagequeue.end() )
                break;
        }
    }
    if ( ( un = newC->sender.GetUnit() ) ) {
        if (un != parent) {
            static bool  talk_more_helps = XMLSupport::parse_bool( vs_config->getVariable( "AI", "talking_faster_helps", "true" ) );
            static float talk_factor     = XMLSupport::parse_float( vs_config->getVariable( "AI", "talk_relation_factor", ".5" ) );
            if (talk_more_helps || !already_communicated)
                AdjustRelationTo( un, newC->getDeltaRelation()*talk_factor );
            messagequeue.push_back( newC );
        }
    }
    if (SERVER) {
        Unit *plr = const_cast< UnitContainer& > (c.sender).GetUnit();
        int   cp  = _Universe->whichPlayerStarship( parent );
        if (cp >= 1)
            VSServer->sendCommunication( plr, parent, &c );
    }
}

string Order::createFullOrderDescription

(

int

level = 0)

Definition at line 228 of file order.cpp.

References getOrderDescription(), i, j, BeamXML::level, and suborders.

{
    string tabs;
    for (int i = 0; i < level; i++)
        tabs = tabs+"   ";
    string desc = tabs+"+"+getOrderDescription()+"\n";
    for (unsigned int j = 0; j < suborders.size(); j++)
        desc = desc+suborders[j]->createFullOrderDescription( level+1 );
    return desc;
}

void Order::Destroy ( )

virtual

The virutal function that unrefs all memory then calls Destruct () which takes care of unreffing this or calling delete on this.

Reimplemented in Orders::ExecuteFor, FlyByKeyboard, Orders::DockingOps, and CommunicatingAI.

Definition at line 166 of file order.cpp.

References Destructor(), getOrderDescription(), i, messagequeue, and suborders.

Referenced by CommunicatingAI::Destroy(), Orders::DockingOps::Destroy(), FlyByKeyboard::Destroy(), Orders::ExecuteFor::Destroy(), Unit::DisableTurretAI(), FlyByKeyboard::Execute(), ReplaceOrder(), and Unit::SetTurretAI().

{
    unsigned int i;
    for (i = 0; i < suborders.size(); i++) {
        if (suborders[i] == NULL) {
            printf( "ORDER: a null order\n" );
            printf( "this order: %s\n", getOrderDescription().c_str() );
        } else {
            suborders[i]->Destroy();
        }
    }
    {
        for (list< CommunicationMessage* >::iterator i = messagequeue.begin(); i != messagequeue.end(); i++)
            delete (*i);
    }
    messagequeue.clear();
    suborders.clear();
    this->Destructor();
}

void Order::Destructor ( )

protectedvirtual

changes the local relation of this unit to another...may inform superiors about "good" or bad! behavior depending on the AI

Definition at line 162 of file order.cpp.

Referenced by Destroy().

{
    delete this;
}

bool Order::Done ( )

inline

Definition at line 127 of file order.h.

References done.

Referenced by Orders::AutoDocking::DepartureState(), Orders::ChangeHeading::Execute(), Orders::Join::Execute(), and Orders::Sequence::Execute().

    {
        return done;
    }

Order * Order::EnqueueOrder

(

Order *

ord)

Enqueues another order that will be executed (in parallel perhaps) when next void Execute() is called.

Definition at line 80 of file order.cpp.

References getOrderDescription(), parent, SetParent(), and suborders.

Referenced by AddOrd(), AfterburnVeerAndTurnAway(), Orders::AutoDocking::EnqueuePort(), Orders::AggressiveAI::ExecuteLogicItem(), GoTo(), Orders::Join::Join(), Orders::DockingOps::Movement(), Orders::DockingOps::PerformDockingOperations(), and Orders::Sequence::Sequence().

{
    if (ord == NULL) {
        printf( "NOT ENQEUEING NULL ORDER\n" );
        printf( "this order: %s\n", getOrderDescription().c_str() );
        return NULL;
    }
    ord->SetParent( parent );
    suborders.push_back( ord );
    return this;
}

Order * Order::EnqueueOrderFirst

(

Order *

ord)

enqueue order as first order

Definition at line 91 of file order.cpp.

References getOrderDescription(), parent, SetParent(), and suborders.

Referenced by FlyByKeyboard::Execute(), and Orders::AggressiveAI::ProcessCurrentFgDirective().

{
    if (ord == NULL) {
        printf( "NOT ENQEUEING NULL ORDER\n" );
        printf( "this order: %s\n", getOrderDescription().c_str() );
        return NULL;
    }
    ord->SetParent( parent );

    vector< Order* >::iterator first_elem = suborders.begin();
    suborders.insert( first_elem, ord );
    return this;
}

void Order::eraseOrder

(

Order *

ord)

erase that order from the list

Definition at line 196 of file order.cpp.

References getOrderDescription(), i, j, and suborders.

{
    bool found = false;
    if (ord == NULL) {
        printf( "NOT ERASING A NULL ORDER\n" );
        printf( "this order: %s\n", getOrderDescription().c_str() );
        return;
    }
    for (unsigned int i = 0; i < suborders.size() && found == false; i++)
        if (suborders[i] == ord) {
            suborders[i]->Destroy();
            vector< Order* >::iterator j = suborders.begin()+i;
            suborders.erase( j );
            found = true;
        }
    if (!found) {
        printf( "TOLD TO ERASE AN ORDER - NOT FOUND\n" );
        printf( "this order: %s\n", getOrderDescription().c_str() );
    }
}

void Order::eraseType

(

unsigned int

type)

Erases all orders that bitwise OR with that type.

Definition at line 69 of file order.cpp.

References i, j, suborders, and type.

Referenced by Orders::AutoDocking::EraseOrders(), Orders::AggressiveAI::Execute(), FlyByKeyboard::Execute(), GoTo(), Orders::AggressiveAI::ProcessCurrentFgDirective(), and Orders::AggressiveAI::ProcessLogic().

{
    for (unsigned int i = 0; i < suborders.size(); i++)
        if ( (suborders[i]->type&type) == type ) {
            suborders[i]->Destroy();
            vector< Order* >::iterator j = suborders.begin()+i;
            suborders.erase( j );
            i--;
        }
}

void Order::Execute ( )

virtual

The function that gets called and executes all queued suborders.

Reimplemented in FlyTo, Orders::FacePerpendicular, Orders::LoopAroundAgro, Orders::LoopAround, Orders::Sequence, Orders::Join, Orders::ExecuteFor, Orders::FaceDirection, FlyByWire, Orders::FormUpToOwner, Orders::FormUp, Orders::FaceTargetITTS, FireKeyboard, EvadeLeftRightC, Orders::AutoLongHaul, Orders::MatchVelocity, Orders::FaceTarget, Orders::ChangeHeading, Orders::MatchRoll, FlyByKeyboard, Orders::MatchAngularVelocity, Orders::MoveTo, Orders::AutoDocking, Orders::FireAt, Orders::AggressiveAI, AImissionScript, PlanetaryOrbit, AIScript, Orders::MatchLinearVelocity, Orders::DockingOps, CloakFor, FlyByJoystick, Orders::Ikarus, Orders::TurretAI, and Orders::FireAllYouGot.

Definition at line 31 of file order.cpp.

References ALLTYPES, done, getType(), VegaConfig::getVariable(), i, XMLSupport::parse_float(), ProcessCommunicationMessages(), suborders, and vs_config.

Referenced by Orders::AutoDocking::ApproachState(), Orders::AutoDocking::DepartureState(), Orders::Ikarus::Execute(), AIScript::Execute(), AImissionScript::Execute(), PlanetaryOrbit::Execute(), Orders::FireAt::Execute(), Orders::MatchAngularVelocity::Execute(), FlyByKeyboard::Execute(), Orders::MatchRoll::Execute(), Orders::ChangeHeading::Execute(), Orders::ExecuteFor::Execute(), Orders::Join::Execute(), and Orders::Sequence::Execute().

{
    static float airesptime = XMLSupport::parse_float( vs_config->getVariable( "AI", "CommResponseTime", "3" ) );
    ProcessCommunicationMessages( airesptime, true );
    int completed  = 0;
    unsigned int i = 0;
    for (i = 0; i < suborders.size(); i++)
        if ( ( completed&( (suborders[i])->getType()&(ALLTYPES) ) ) == 0 ) {
            (suborders[i])->Execute();
            completed |= (suborders[i])->getType();
            if ( (suborders[i])->Done() ) {
                vector< Order* >::iterator ord = suborders.begin()+i;
                (*ord)->Destroy();
                suborders.erase( ord );
                i--;
            }
        }
    if (suborders.size() == 0)
        done = true;
    else
        done = false;
}

Order * Order::findOrder

(

Order *

ord)

return pointer to order or NULL if not found

Definition at line 146 of file order.cpp.

References getOrderDescription(), i, and suborders.

{
    if (ord == NULL) {
        printf( "FINDING EMPTY ORDER\n" );
        printf( "this order: %s\n", getOrderDescription().c_str() );
        return NULL;
    }
    for (unsigned int i = 0; i < suborders.size(); i++)
        if (suborders[i] == ord)
            return suborders[i];
    return NULL;
}

Order * Order::findOrderList

(

)

searches the suborders recursively for the first order that has an orderlist

Definition at line 217 of file order.cpp.

References getOrderList(), i, and suborders.

Referenced by Mission::DirectorShipDestroyed().

{
    olist_t *orderlist   = getOrderList();
    if (orderlist)
        return this;
    Order   *found_order = NULL;
    for (unsigned int i = 0; i < suborders.size() && found_order == NULL; i++)
        found_order = suborders[i]->findOrderList();
    return found_order;
}

std::string Order::getActionString ( )

inline

Definition at line 179 of file order.h.

References actionstring.

Referenced by AImissionScript::getOrderDescription().

    {
        return actionstring;
    }

virtual float Order::getMood ( )

inlinevirtual

Reimplemented in CommunicatingAI.

Definition at line 183 of file order.h.

    {
        return 0;
    }

virtual std::string Order::getOrderDescription ( )

inlinevirtual

Reimplemented in Orders::FaceDirection, FlyByWire, Orders::FormUpToOwner, Orders::FormUp, Orders::FaceTargetITTS, Orders::AutoLongHaul, Orders::MatchVelocity, Orders::FaceTarget, Orders::ChangeHeading, Orders::MatchRoll, Orders::MatchAngularVelocity, Orders::MoveTo, Orders::AggressiveAI, AImissionScript, Orders::MatchLinearVelocity, and Orders::Ikarus.

Definition at line 167 of file order.h.

Referenced by createFullOrderDescription(), Destroy(), EnqueueOrder(), EnqueueOrderFirst(), eraseOrder(), and findOrder().

    {
        return "empty";
    }

virtual olist_t* Order::getOrderList ( )

inlinevirtual

returns the orderlist (NULL for orders that haven't got any)

Reimplemented in AIOrderList.

Definition at line 161 of file order.h.

Referenced by Mission::DirectorShipDestroyed(), and findOrderList().

    {
        return NULL;
    }

Unit* Order::GetParent ( ) const

inline

Definition at line 144 of file order.h.

References parent.

Referenced by Orders::AutoDocking::Execute(), Orders::FireAt::GetParent(), and CommunicatingAI::GetRandomUnit().

    {
        return parent;
    }

int Order::getSubType ( )

inline

Definition at line 135 of file order.h.

References subtype.

Referenced by Orders::Join::Join().

    {
        return subtype;
    }

int Order::getType ( )

inline

Definition at line 131 of file order.h.

References type.

Referenced by Communicate(), Execute(), Orders::ExecuteFor::Execute(), Orders::Join::Join(), and ReplaceOrder().

    {
        return type;
    }

void Order::ProcessCommMessage ( class CommunicationMessage &  c)

virtual

processes a single message...generally called by the Messages() func

Reimplemented in FireKeyboard, and CommunicatingAI.

Definition at line 61 of file order_comm.cpp.

Referenced by CommunicatingAI::ProcessCommMessage(), and ProcessCommunicationMessages().

{}

void Order::ProcessCommunicationMessages ( float  CommRepsonseTime, bool  RemoveMessageProcessed  )

virtual

responds (or does not) to certain messages in the message queue

Definition at line 62 of file order_comm.cpp.

References c, Communicate(), CommunicationMessage::fsm, FSM::GetAbleToDockNode(), Unit::getAIState(), Unit::getFlightgroup(), Unit::getRelation(), FSM::GetUnAbleToDockNode(), messagequeue, Flightgroup::name, parent, ProcessCommMessage(), Unit::RequestClearance(), CommunicationMessage::SetCurrentState(), and SIMULATION_ATOM.

Referenced by Execute(), and FireKeyboard::Execute().

{
    float time = AICommresponseTime/SIMULATION_ATOM;
    if (time <= .001)
        time += .001;
    if ( !messagequeue.empty() ) {
        bool cleared = false;
        if ( messagequeue.back()->curstate == messagequeue.back()->fsm->GetRequestLandNode() ) {
            cleared = true;
            RemoveMessageProcessed = true;
            Unit *un = messagequeue.back()->sender.GetUnit();
            if (un) {
                CommunicationMessage c( parent, un, NULL, 0 );
                if ( parent->getRelation( un ) >= 0
                    || (parent->getFlightgroup() && parent->getFlightgroup()->name == "Base") ) {
                    parent->RequestClearance( un );
                    c.SetCurrentState( c.fsm->GetAbleToDockNode(), NULL, 0 );
                } else {
                    c.SetCurrentState( c.fsm->GetUnAbleToDockNode(), NULL, 0 );
                }
                Order *o = un->getAIState();
                if (o)
                    o->Communicate( c );
            }
        }
        if ( cleared || ( ( (float) rand() )/RAND_MAX ) < (1/time) ) {
            FSM::Node *n;
            if ( ( n = messagequeue.back()->getCurrentState() ) )
                ProcessCommMessage( *messagequeue.back() );
            if (RemoveMessageProcessed) {
                delete messagequeue.back();
                messagequeue.pop_back();
            } else {
                messagequeue.push_front( messagequeue.back() );
                messagequeue.pop_back();
            }
        }
    }
}

virtual bool Order::PursueTarget ( Unit *  , bool  isleader  )

inlinevirtual

Reimplemented in Orders::FireAt.

Definition at line 77 of file order.h.

Referenced by Unit::AutoPilotToErrorMessage().

    {
        return false;
    }

Order * Order::queryAny

(

unsigned int

type)

returns a pointer to the first order that may be bitwise ored with any type

Definition at line 61 of file order.cpp.

References i, and suborders.

Referenced by Orders::AggressiveAI::Execute().

{
    for (unsigned int i = 0; i < suborders.size(); i++)
        if ( (suborders[i]->type&type) != 0 )
            return suborders[i];
    return NULL;
}

Order * Order::queryType

(

unsigned int

type)

returns a pointer to the first order that may be bitwised ored with that type

Definition at line 54 of file order.cpp.

References i, suborders, and type.

Referenced by FlyByKeyboard::Execute(), and Orders::AggressiveAI::ProcessLogicItem().

{
    for (unsigned int i = 0; i < suborders.size(); i++)
        if ( (suborders[i]->type&type) == type )
            return suborders[i];
    return NULL;
}

Order * Order::ReplaceOrder

(

Order *

ord)

Replaces the first order of that type in the order queue.

Definition at line 104 of file order.cpp.

References ALLTYPES, Destroy(), getType(), and suborders.

Referenced by GoTo(), Orders::AggressiveAI::ProcessCurrentFgDirective(), and ReplaceOrd().

{
    for (vector< Order* >::iterator ordd = suborders.begin(); ordd != suborders.end();) {
        if ( ( ord->getType()&(*ordd)->getType()&(ALLTYPES) ) ) {
            (*ordd)->Destroy();
            ordd = suborders.erase( ordd );
        } else {
            ordd++;
        }
    }
    suborders.push_back( ord );
    return this;
}

void Order::setActionString ( std::string  astring)

inline

Definition at line 175 of file order.h.

References actionstring.

    {
        actionstring = astring;
    }

virtual void Order::SetParent ( Unit *  parent1)

inlinevirtual

Sets the parent of this Unit. Any virtual functions must call this one.

Reimplemented in Orders::FacePerpendicular, Orders::LoopAround, Orders::FaceDirection, Orders::FormUpToOwner, Orders::FormUp, Orders::AutoLongHaul, EvadeLeftRightC, Orders::FireAt, Orders::AggressiveAI, FireKeyboard, and Orders::DockingOps.

Definition at line 140 of file order.h.

References parent.

Referenced by AddOrd(), Unit::DisableTurretAI(), Unit::EnqueueAI(), Unit::EnqueueAIFirst(), EnqueueOrder(), EnqueueOrderFirst(), FlyByKeyboard::Execute(), Orders::ExecuteFor::Execute(), GoTo(), Orders::Join::Join(), PlanetaryOrbit::PlanetaryOrbit(), Unit::PrimeOrders(), Orders::AggressiveAI::ProcessCurrentFgDirective(), ReplaceOrd(), Orders::Sequence::Sequence(), Unit::SetAI(), Orders::DockingOps::SetParent(), FireKeyboard::SetParent(), Orders::FireAt::SetParent(), EvadeLeftRightC::SetParent(), Orders::AutoLongHaul::SetParent(), Orders::FormUp::SetParent(), Orders::FormUpToOwner::SetParent(), Orders::FaceDirection::SetParent(), Orders::LoopAround::SetParent(), Orders::FacePerpendicular::SetParent(), and Unit::SetTurretAI().

    {
        parent = parent1;
    }

Member Data Documentation

std::string Order::actionstring

protected

Definition at line 188 of file order.h.

Referenced by AImissionScript::AImissionScript(), getActionString(), and setActionString().

bool Order::done

protected

Whether or not this order is done.

Definition at line 57 of file order.h.

Referenced by Orders::AutoDocking::DepartureState(), Done(), Orders::AutoDocking::EndState(), CloakFor::Execute(), Orders::DockingOps::Execute(), Orders::MatchLinearVelocity::Execute(), AImissionScript::Execute(), PlanetaryOrbit::Execute(), Orders::AutoDocking::Execute(), Orders::MoveTo::Execute(), Orders::MatchAngularVelocity::Execute(), FlyByKeyboard::Execute(), Execute(), Orders::ChangeHeading::Execute(), Orders::FaceTarget::Execute(), Orders::MatchVelocity::Execute(), Orders::AutoLongHaul::Execute(), Orders::FaceTargetITTS::Execute(), Orders::FaceDirection::Execute(), Orders::ExecuteFor::Execute(), Orders::Join::Execute(), Orders::Sequence::Execute(), Orders::MatchAngularVelocity::MatchAngularVelocity(), Orders::MatchLinearVelocity::MatchLinearVelocity(), Orders::MoveTo::MoveTo(), Orders::ChangeHeading::ResetDone(), Orders::MoveTo::SetDest(), and Orders::DockingOps::Undock().

UnitContainer Order::group

protected

If this order applies to a group of units (as in form up with this group)

Definition at line 59 of file order.h.

Referenced by AttachSelfOrder(), PlanetaryOrbit::Execute(), Orders::AutoLongHaul::Execute(), Orders::FormUp::Execute(), Orders::FormUpToOwner::Execute(), Orders::FaceDirection::Execute(), and Orders::AutoLongHaul::SetParent().

std::list< class CommunicationMessage* > Order::messagequeue

protected

a bunch of communications that have not been answered CommunicationMessages are actually containing reference to a nice Finite State Machine that can allow a player to have a reasonable conversation with an AI

Definition at line 65 of file order.h.

Referenced by ClearMessages(), Communicate(), Destroy(), CommunicatingAI::ProcessCommMessage(), ProcessCommunicationMessages(), and CommunicatingAI::RandomInitiateCommunication().

Unit* Order::parent

protected

The unit this order is attached to.

Definition at line 51 of file order.h.

Referenced by FlyByWire::Accel(), Orders::FireAt::AddReplaceLastOrder(), CommunicatingAI::AdjustRelationTo(), FlyByWire::Afterburn(), Orders::AggressiveAI::AfterburnerJumpTurnTowards(), AttachOrder(), Orders::FireAt::ChangeLocalDirection(), FlyByKeyboard::clamp_axis(), Communicate(), CommunicatingAI::Destroy(), Orders::DockingOps::Destroy(), FlyByWire::DirectThrustFront(), FlyByWire::DirectThrustRight(), FlyByWire::DirectThrustUp(), Orders::DockingOps::DockToTarget(), EnqueueOrder(), EnqueueOrderFirst(), Orders::FireAllYouGot::Execute(), Orders::TurretAI::Execute(), FlyByJoystick::Execute(), Orders::Ikarus::Execute(), CloakFor::Execute(), Orders::DockingOps::Execute(), PlanetaryOrbit::Execute(), AImissionScript::Execute(), Orders::AggressiveAI::Execute(), Orders::MatchAngularVelocity::Execute(), FlyByKeyboard::Execute(), FireKeyboard::Execute(), FlyByWire::Execute(), Orders::ExecuteFor::Execute(), Orders::AggressiveAI::ExecuteNoEnemies(), CommunicatingAI::GetMadAt(), GetParent(), CommunicatingAI::GetRandomUnit(), FlyByWire::InertialFlight(), CommunicatingAI::InitiateContrabandSearch(), Orders::FireAt::MatchAngularVelocity(), Orders::FireAt::MatchLinearVelocity(), FlyByWire::MatchSpeed(), Orders::FireAt::MatchVelocity(), Orders::DockingOps::Movement(), Orders::DockingOps::PerformDockingOperations(), CommunicatingAI::ProcessCommMessage(), FireKeyboard::ProcessCommMessage(), ProcessCommunicationMessages(), Orders::AggressiveAI::ProcessCurrentFgDirective(), Orders::AggressiveAI::ProcessLogicItem(), Orders::FireAt::PursueTarget(), CommunicatingAI::RandomInitiateCommunication(), Orders::AggressiveAI::ReCommandWing(), FlyByKeyboard::reduce_axis(), Orders::DockingOps::RequestClearence(), Orders::DockingOps::RestoreOldAI(), FlyByWire::Right(), FlyByWire::RollRight(), CommunicatingAI::selectCommunicationMessage(), CommunicatingAI::selectCommunicationMessageMood(), Orders::DockingOps::SetParent(), FireKeyboard::SetParent(), Orders::AggressiveAI::SetParent(), SetParent(), Orders::AggressiveAI::SignalChosenTarget(), FlyByWire::Stop(), CommunicatingAI::TerminateContrabandSearch(), FlyByWire::ThrustFront(), FlyByWire::ThrustRight(), FlyByWire::ThrustUp(), Orders::DockingOps::Undock(), FlyByWire::Up(), CommunicatingAI::UpdateContrabandSearch(), AImissionScript::~AImissionScript(), CloakFor::~CloakFor(), and PlanetaryOrbit::~PlanetaryOrbit().

std::vector< Order* > Order::suborders

protected

The queue of suborders that will be executed in parallel according to bit code.

Definition at line 63 of file order.h.

Referenced by ClearMessages(), Communicate(), createFullOrderDescription(), Destroy(), EnqueueOrder(), EnqueueOrderFirst(), eraseOrder(), eraseType(), Orders::MatchLinearVelocity::Execute(), Execute(), findOrder(), findOrderList(), Orders::AggressiveAI::ProcessCurrentFgDirective(), queryAny(), queryType(), and ReplaceOrder().

unsigned int Order::subtype

protected

Definition at line 55 of file order.h.

Referenced by AttachOrder(), AttachSelfOrder(), Orders::AutoLongHaul::AutoLongHaul(), PlanetaryOrbit::Execute(), Orders::FaceDirection::FaceDirection(), Orders::FaceTarget::FaceTarget(), Orders::FaceTargetITTS::FaceTargetITTS(), Orders::FormUp::FormUp(), Orders::FormUpToOwner::FormUpToOwner(), getSubType(), Orders::MatchVelocity::MatchVelocity(), and PlanetaryOrbit::PlanetaryOrbit().

QVector Order::targetlocation

protected

If this order applies to a physical location in world space.

Definition at line 61 of file order.h.

Referenced by AttachOrder(), PlanetaryOrbit::Execute(), Orders::MoveTo::Execute(), Orders::MoveTo::MoveTo(), and Orders::MoveTo::SetDest().

unsigned int Order::type

protected

The bit code (from ORDERTYPES) that this order is (for parallel execution)

Definition at line 53 of file order.h.

Referenced by Orders::AutoLongHaul::AutoLongHaul(), eraseType(), Orders::ExecuteFor::Execute(), Orders::FaceDirection::FaceDirection(), Orders::FaceTarget::FaceTarget(), Orders::FaceTargetITTS::FaceTargetITTS(), getType(), Orders::MatchVelocity::MatchVelocity(), PlanetaryOrbit::PlanetaryOrbit(), queryType(), and Orders::TurretAI::TurretAI().

---

The documentation for this class was generated from the following files:

• src/cmd/ai/order.h
• src/cmd/ai/order.cpp
• src/cmd/ai/order_comm.cpp
