#include <flybywire.h>

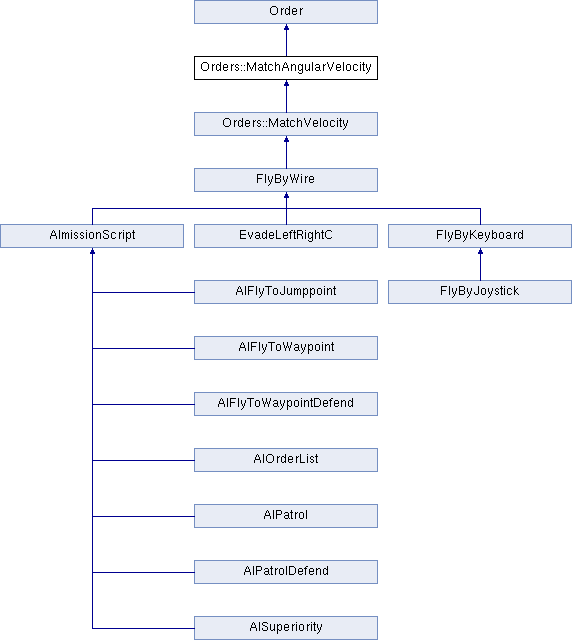

Inheritance diagram for Orders::MatchAngularVelocity:

Public Member Functions
	MatchAngularVelocity (const Vector &desired, bool Local, bool fini=true)

void	Execute ()
	The function that gets called and executes all queued suborders. More...

void	SetDesiredAngularVelocity (const Vector &desired, bool Local)

virtual	~MatchAngularVelocity ()

virtual std::string	getOrderDescription ()

Public Member Functions inherited from Order
virtual void	ChooseTarget ()
	this function calls the destructor (needs to be overridden for python; More...

virtual bool	PursueTarget (Unit *, bool isleader)

void	ClearMessages ()
	clears the messasges of this order More...

	Order ()
	The default constructor setting everything to NULL and no dependency on order. More...

	Order (int type, int subtype)
	The constructor that specifies what order dependencies this order has. More...

virtual void	Destroy ()
	The virutal function that unrefs all memory then calls Destruct () which takes care of unreffing this or calling delete on this. More...

Order *	queryType (unsigned int type)
	returns a pointer to the first order that may be bitwised ored with that type More...

Order *	queryAny (unsigned int type)
	returns a pointer to the first order that may be bitwise ored with any type More...

void	eraseType (unsigned int type)
	Erases all orders that bitwise OR with that type. More...

bool	AttachOrder (Unit *targets)
	Attaches a group of targets to this order (used for strategery-type games) More...

bool	AttachOrder (QVector target)
	Attaches a navigation point to this order. More...

bool	AttachSelfOrder (Unit *targets)
	Attaches a group (form up) to this order. More...

Order *	EnqueueOrder (Order *ord)
	Enqueues another order that will be executed (in parallel perhaps) when next void Execute() is called. More...

Order *	ReplaceOrder (Order *ord)
	Replaces the first order of that type in the order queue. More...

bool	Done ()

int	getType ()

int	getSubType ()

virtual void	SetParent (Unit *parent1)
	Sets the parent of this Unit. Any virtual functions must call this one. More...

Unit *	GetParent () const

virtual void	Communicate (const class CommunicationMessage &c)
	Sends a communication message from the Unit (encapulated in c) to this unit. More...

virtual void	ProcessCommMessage (class CommunicationMessage &c)
	processes a single message...generally called by the Messages() func More...

virtual void	ProcessCommunicationMessages (float CommRepsonseTime, bool RemoveMessageProcessed)
	responds (or does not) to certain messages in the message queue More...

Order *	findOrder (Order *ord)
	return pointer to order or NULL if not found More...

void	eraseOrder (Order *ord)
	erase that order from the list More...

Order *	EnqueueOrderFirst (Order *ord)
	enqueue order as first order More...

virtual olist_t *	getOrderList ()
	returns the orderlist (NULL for orders that haven't got any) More...

virtual void	AdjustRelationTo (Unit *un, float factor)

Order *	findOrderList ()
	searches the suborders recursively for the first order that has an orderlist More...

std::string	createFullOrderDescription (int level=0)

void	setActionString (std::string astring)

std::string	getActionString ()

virtual float	getMood ()

Protected Attributes
Vector	desired_ang_velocity
	werld space or local space (pitch = 1 on the x axis) More...

bool	LocalAng
	specified in Local or World coordinates More...

bool	willfinish
	Whether this script should terminate upon reaching desired angular velocity. More...

Protected Attributes inherited from Order
Unit *	parent
	The unit this order is attached to. More...

unsigned int	type
	The bit code (from ORDERTYPES) that this order is (for parallel execution) More...

unsigned int	subtype

bool	done
	Whether or not this order is done. More...

UnitContainer	group
	If this order applies to a group of units (as in form up with this group) More...

QVector	targetlocation
	If this order applies to a physical location in world space. More...

std::vector< Order * >	suborders
	The queue of suborders that will be executed in parallel according to bit code. More...

std::list< class CommunicationMessage * >	messagequeue
	a bunch of communications that have not been answered CommunicationMessages are actually containing reference to a nice Finite State Machine that can allow a player to have a reasonable conversation with an AI More...

std::string	actionstring

Additional Inherited Members
Public Types inherited from Order
enum	ORDERTYPES { MOVEMENT =1, FACING =2, WEAPON =4, CLOAKING =8, ALLTYPES =(1\|2\|4\|8) }
	The varieties of order types MOVEMENT,FACING, and WEAPON orders may not be mutually executed (lest one engine goes left, the other right) More...

enum	SUBORDERTYPES { SLOCATION =1, STARGET =2, SSELF =4 }

Protected Member Functions inherited from Order
virtual	~Order ()

virtual void	Destructor ()
	changes the local relation of this unit to another...may inform superiors about "good" or bad! behavior depending on the AI More...

Detailed Description

This class attempts to match given turning velocity through firing minimum ammt of thrusters

Definition at line 51 of file flybywire.h.

Constructor & Destructor Documentation

Orders::MatchAngularVelocity::MatchAngularVelocity	(	const Vector &	desired,
		bool	Local,
		bool	fini = `true`
	)

inline

Definition at line 60 of file flybywire.h.

References Order::done.

       : MatchAngularVelocity( const Vector &desired, bool Local, bool fini = true ) : Order( FACING, SLOCATION )
         , desired_ang_velocity( desired )
         , LocalAng( Local )
         , willfinish( fini )
     {
         done = false;
     }

MatchAngularVelocity::~MatchAngularVelocity ( )

virtual

Definition at line 114 of file flybywire.cpp.

References VSFileSystem::vs_fprintf().

 {
 #ifdef ORDERDEBUG
     VSFileSystem::vs_fprintf( stderr, "mav%x", this );
     fflush( stderr );
 #endif
 }

Member Function Documentation

void MatchAngularVelocity::Execute ( )

virtual

The function that gets called and executes all queued suborders.

Reimplemented from Order.

Reimplemented in FlyByWire, EvadeLeftRightC, Orders::MatchVelocity, FlyByKeyboard, AImissionScript, and FlyByJoystick.

Definition at line 95 of file flybywire.cpp.

References ANGVELTHRESHOLD, Unit::ApplyLocalTorque(), desired_ang_velocity, Order::done, Order::Execute(), Unit::GetAngularVelocity(), Unit::GetMoment(), LocalAng, Order::parent, SIMULATION_ATOM, Unit::ToLocalCoordinates(), Unit::UpCoordinateLevel(), Vector, and willfinish.

Referenced by Orders::MatchVelocity::Execute().

 {
     bool   temp = done;
     Order::Execute();
     done = temp;
     Vector desired( desired_ang_velocity );

     Vector angvel( parent->UpCoordinateLevel( parent->GetAngularVelocity() ) );
     if (!LocalAng)
         desired = parent->ToLocalCoordinates( desired );
     if (willfinish) {
         if ( (done = fabs( desired.i-angvel.i ) < ANGVELTHRESHOLD && fabs( desired.j-angvel.j ) < ANGVELTHRESHOLD
                      && fabs( desired.k-angvel.k ) < ANGVELTHRESHOLD) )
             return;
     }
     parent->ApplyLocalTorque( parent->GetMoment()*( desired-parent->UpCoordinateLevel(
                                                        parent->GetAngularVelocity() ) )/SIMULATION_ATOM );
 }

virtual std::string Orders::MatchAngularVelocity::getOrderDescription ( )

inlinevirtual

Reimplemented from Order.

Reimplemented in FlyByWire, Orders::MatchVelocity, and AImissionScript.

Definition at line 74 of file flybywire.h.

     {
         return "mav";
     }

void Orders::MatchAngularVelocity::SetDesiredAngularVelocity	(	const Vector &	desired,
		bool	Local
	)

inline

Definition at line 68 of file flybywire.h.

References desired_ang_velocity, and LocalAng.

     {
         desired_ang_velocity = desired;
         LocalAng = Local;
     }

Member Data Documentation

Vector Orders::MatchAngularVelocity::desired_ang_velocity

protected

werld space or local space (pitch = 1 on the x axis)

Definition at line 55 of file flybywire.h.

Referenced by FlyByJoystick::Execute(), AImissionScript::Execute(), Execute(), FlyByKeyboard::Execute(), FlyByWire::Right(), FlyByWire::RollRight(), SetDesiredAngularVelocity(), and FlyByWire::Up().

bool Orders::MatchAngularVelocity::LocalAng

protected

specified in Local or World coordinates

Definition at line 57 of file flybywire.h.

Referenced by Execute(), and SetDesiredAngularVelocity().

bool Orders::MatchAngularVelocity::willfinish

protected

Whether this script should terminate upon reaching desired angular velocity.

Definition at line 59 of file flybywire.h.

Referenced by Execute(), and Orders::MatchVelocity::Execute().

The documentation for this class was generated from the following files:

src/cmd/ai/flybywire.h
src/cmd/ai/flybywire.cpp
