#include <missionscript.h>

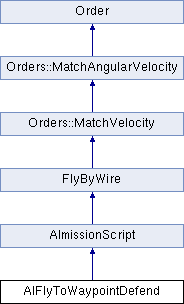

Inheritance diagram for AIFlyToWaypointDefend:

Public Member Functions
	AIFlyToWaypointDefend (const QVector &waypoint, float vel, bool afburn, float range, float defend_range)

Public Member Functions inherited from AImissionScript
	AImissionScript (string modulename)
	saves scriptname in the filename var More...

	~AImissionScript ()

void	Execute ()
	Loads the AI script from the hard drive, or executes if loaded. More...

virtual string	getOrderDescription ()

Public Member Functions inherited from FlyByWire
	FlyByWire ()

	~FlyByWire ()

void	SwitchFlightMode ()

void	ThrustRight (float percent)
	Turns on or off velocity resolution. More...

void	ThrustUp (float percent)

void	ThrustFront (float percent)

void	DirectThrustRight (float percent)

void	DirectThrustUp (float percent)

void	DirectThrustFront (float percent)

void	SheltonSlide (bool onoff)

void	InertialFlight (bool onoff)

bool	InertialFlight () const

bool	InertialFlightEnable () const

void	Stop (float percentage)
	Stops... sets desired velocity to 0. More...

void	Right (float percentage)
	pass in the percentage of the turn they were turnin right. -age indicates left More...

void	Up (float percentage)
	pass in the percentage of the turn they were turning up More...

void	RollRight (float percentage)

void	Afterburn (float percentage)
	Specifies match speed to use afterbuner and gives in higher velocity. More...

void	MatchSpeed (const Vector &velocity)
	matches set_speed to this velocity's magnitude More...

void	Accel (float percentage)
	negative is decel... 0 = nothing More...

Public Member Functions inherited from Orders::MatchVelocity
	MatchVelocity (const Vector &desired, const Vector &desired_ang, const bool Local, const bool afterburner, const bool fini=true)

void	SetDesiredVelocity (const Vector &desired, const bool Local)

void	SetAfterburn (bool use_afterburn)

virtual	~MatchVelocity ()

Public Member Functions inherited from Orders::MatchAngularVelocity
	MatchAngularVelocity (const Vector &desired, bool Local, bool fini=true)

void	SetDesiredAngularVelocity (const Vector &desired, bool Local)

virtual	~MatchAngularVelocity ()

Public Member Functions inherited from Order
virtual void	ChooseTarget ()
	this function calls the destructor (needs to be overridden for python; More...

virtual bool	PursueTarget (Unit *, bool isleader)

void	ClearMessages ()
	clears the messasges of this order More...

	Order ()
	The default constructor setting everything to NULL and no dependency on order. More...

	Order (int type, int subtype)
	The constructor that specifies what order dependencies this order has. More...

virtual void	Destroy ()
	The virutal function that unrefs all memory then calls Destruct () which takes care of unreffing this or calling delete on this. More...

Order *	queryType (unsigned int type)
	returns a pointer to the first order that may be bitwised ored with that type More...

Order *	queryAny (unsigned int type)
	returns a pointer to the first order that may be bitwise ored with any type More...

void	eraseType (unsigned int type)
	Erases all orders that bitwise OR with that type. More...

bool	AttachOrder (Unit *targets)
	Attaches a group of targets to this order (used for strategery-type games) More...

bool	AttachOrder (QVector target)
	Attaches a navigation point to this order. More...

bool	AttachSelfOrder (Unit *targets)
	Attaches a group (form up) to this order. More...

Order *	EnqueueOrder (Order *ord)
	Enqueues another order that will be executed (in parallel perhaps) when next void Execute() is called. More...

Order *	ReplaceOrder (Order *ord)
	Replaces the first order of that type in the order queue. More...

bool	Done ()

int	getType ()

int	getSubType ()

virtual void	SetParent (Unit *parent1)
	Sets the parent of this Unit. Any virtual functions must call this one. More...

Unit *	GetParent () const

virtual void	Communicate (const class CommunicationMessage &c)
	Sends a communication message from the Unit (encapulated in c) to this unit. More...

virtual void	ProcessCommMessage (class CommunicationMessage &c)
	processes a single message...generally called by the Messages() func More...

virtual void	ProcessCommunicationMessages (float CommRepsonseTime, bool RemoveMessageProcessed)
	responds (or does not) to certain messages in the message queue More...

Order *	findOrder (Order *ord)
	return pointer to order or NULL if not found More...

void	eraseOrder (Order *ord)
	erase that order from the list More...

Order *	EnqueueOrderFirst (Order *ord)
	enqueue order as first order More...

virtual olist_t *	getOrderList ()
	returns the orderlist (NULL for orders that haven't got any) More...

virtual void	AdjustRelationTo (Unit *un, float factor)

Order *	findOrderList ()
	searches the suborders recursively for the first order that has an orderlist More...

std::string	createFullOrderDescription (int level=0)

void	setActionString (std::string astring)

std::string	getActionString ()

virtual float	getMood ()

Public Attributes
QVector	waypoint

float	vel

float	range

bool	aburn

Additional Inherited Members
Public Types inherited from Order
enum	ORDERTYPES { MOVEMENT =1, FACING =2, WEAPON =4, CLOAKING =8, ALLTYPES =(1\|2\|4\|8) }
	The varieties of order types MOVEMENT,FACING, and WEAPON orders may not be mutually executed (lest one engine goes left, the other right) More...

enum	SUBORDERTYPES { SLOCATION =1, STARGET =2, SSELF =4 }

Protected Member Functions inherited from Order
virtual	~Order ()

virtual void	Destructor ()
	changes the local relation of this unit to another...may inform superiors about "good" or bad! behavior depending on the AI More...

Protected Attributes inherited from AImissionScript
string	modulename

unsigned int	classid

bool	first_run

Detailed Description

Definition at line 67 of file missionscript.h.

Constructor & Destructor Documentation

AIFlyToWaypointDefend::AIFlyToWaypointDefend	(	const QVector &	waypoint,
		float	vel,
		bool	afburn,
		float	range,
		float	defend_range
	)

Definition at line 119 of file missionscript.cpp.

References aburn, varInst::bool_val, Mission::call_vector_into_olist(), AImissionScript::classid, varInst::float_val, Mission::lookupClassVariable(), mission, AImissionScript::modulename, range, vel, and waypoint.

                                                                    : AImissionScript( "ai_flyto_waypoint_defend" )
 {
     waypoint = wp;
     vel = velo;
     range    = rng;
     aburn    = afburn;

     varInst *vi_wp = mission->lookupClassVariable( modulename, "waypoint", classid );
     mission->call_vector_into_olist( vi_wp, waypoint );

     varInst *vi_range    = mission->lookupClassVariable( modulename, "abort_range", classid );
     vi_range->float_val    = range;

     varInst *vi_defrange = mission->lookupClassVariable( modulename, "defend_range", classid );
     vi_defrange->float_val = defend_range;

     varInst *vi_vel      = mission->lookupClassVariable( modulename, "vel", classid );
     vi_vel->float_val  = vel;

     varInst *vi_aburn    = mission->lookupClassVariable( modulename, "afterburner", classid );
     vi_aburn->bool_val = aburn;
 }
