Vegastrike 0.5.1 rc1  1.0
Original sources for Vegastrike Evolved
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
AIFlyToJumppoint Class Reference

#include <missionscript.h>

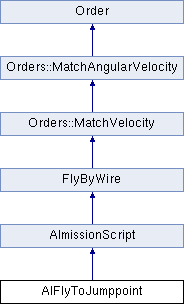

Inheritance diagram for AIFlyToJumppoint:
AImissionScript FlyByWire Orders::MatchVelocity Orders::MatchAngularVelocity Order

Public Member Functions

 AIFlyToJumppoint (Unit *jumppoint, float fly_speed, bool aft)

- Public Member Functions inherited from AImissionScript
 AImissionScript (string modulename)
 saves scriptname in the filename var More...

 ~AImissionScript ()

void Execute ()
 Loads the AI script from the hard drive, or executes if loaded. More...

virtual string getOrderDescription ()

- Public Member Functions inherited from FlyByWire
 FlyByWire ()

 ~FlyByWire ()

void SwitchFlightMode ()

void ThrustRight (float percent)
 Turns on or off velocity resolution. More...

void ThrustUp (float percent)

void ThrustFront (float percent)

void DirectThrustRight (float percent)

void DirectThrustUp (float percent)

void DirectThrustFront (float percent)

void SheltonSlide (bool onoff)

void InertialFlight (bool onoff)

bool InertialFlight () const

bool InertialFlightEnable () const

void Stop (float percentage)
 Stops... sets desired velocity to 0. More...

void Right (float percentage)
 pass in the percentage of the turn they were turnin right. -age indicates left More...

void Up (float percentage)
 pass in the percentage of the turn they were turning up More...

void RollRight (float percentage)

void Afterburn (float percentage)
 Specifies match speed to use afterbuner and gives in higher velocity. More...

void MatchSpeed (const Vector &velocity)
 matches set_speed to this velocity's magnitude More...

void Accel (float percentage)
 negative is decel... 0 = nothing More...

- Public Member Functions inherited from Orders::MatchVelocity
 MatchVelocity (const Vector &desired, const Vector &desired_ang, const bool Local, const bool afterburner, const bool fini=true)

void SetDesiredVelocity (const Vector &desired, const bool Local)

void SetAfterburn (bool use_afterburn)

virtual ~MatchVelocity ()

- Public Member Functions inherited from Orders::MatchAngularVelocity
 MatchAngularVelocity (const Vector &desired, bool Local, bool fini=true)

void SetDesiredAngularVelocity (const Vector &desired, bool Local)

virtual ~MatchAngularVelocity ()

- Public Member Functions inherited from Order
virtual void ChooseTarget ()
 this function calls the destructor (needs to be overridden for python; More...

virtual bool PursueTarget (Unit *, bool isleader)

void ClearMessages ()
 clears the messasges of this order More...

 Order ()
 The default constructor setting everything to NULL and no dependency on order. More...

 Order (int type, int subtype)
 The constructor that specifies what order dependencies this order has. More...

virtual void Destroy ()
 The virutal function that unrefs all memory then calls Destruct () which takes care of unreffing this or calling delete on this. More...

OrderqueryType (unsigned int type)
 returns a pointer to the first order that may be bitwised ored with that type More...

OrderqueryAny (unsigned int type)
 returns a pointer to the first order that may be bitwise ored with any type More...

void eraseType (unsigned int type)
 Erases all orders that bitwise OR with that type. More...

bool AttachOrder (Unit *targets)
 Attaches a group of targets to this order (used for strategery-type games) More...

bool AttachOrder (QVector target)
 Attaches a navigation point to this order. More...

bool AttachSelfOrder (Unit *targets)
 Attaches a group (form up) to this order. More...

OrderEnqueueOrder (Order *ord)
 Enqueues another order that will be executed (in parallel perhaps) when next void Execute() is called. More...

OrderReplaceOrder (Order *ord)
 Replaces the first order of that type in the order queue. More...

bool Done ()

int getType ()

int getSubType ()

virtual void SetParent (Unit *parent1)
 Sets the parent of this Unit. Any virtual functions must call this one. More...

UnitGetParent () const

virtual void Communicate (const class CommunicationMessage &c)
 Sends a communication message from the Unit (encapulated in c) to this unit. More...

virtual void ProcessCommMessage (class CommunicationMessage &c)
 processes a single message...generally called by the Messages() func More...

virtual void ProcessCommunicationMessages (float CommRepsonseTime, bool RemoveMessageProcessed)
 responds (or does not) to certain messages in the message queue More...

OrderfindOrder (Order *ord)
 return pointer to order or NULL if not found More...

void eraseOrder (Order *ord)
 erase that order from the list More...

OrderEnqueueOrderFirst (Order *ord)
 enqueue order as first order More...

virtual olist_tgetOrderList ()
 returns the orderlist (NULL for orders that haven't got any) More...

virtual void AdjustRelationTo (Unit *un, float factor)

OrderfindOrderList ()
 searches the suborders recursively for the first order that has an orderlist More...

std::string createFullOrderDescription (int level=0)

void setActionString (std::string astring)

std::string getActionString ()

virtual float getMood ()


Additional Inherited Members

- Public Types inherited from Order
enum  ORDERTYPES {
  MOVEMENT =1, FACING =2, WEAPON =4, CLOAKING =8,
  ALLTYPES =(1|2|4|8)
}
 The varieties of order types MOVEMENT,FACING, and WEAPON orders may not be mutually executed (lest one engine goes left, the other right) More...

enum  SUBORDERTYPES { SLOCATION =1, STARGET =2, SSELF =4 }

- Protected Member Functions inherited from Order
virtual ~Order ()

virtual void Destructor ()
 changes the local relation of this unit to another...may inform superiors about "good" or bad! behavior depending on the AI More...

- Protected Attributes inherited from AImissionScript
string modulename

unsigned int classid

bool first_run


Detailed Description

Definition at line 77 of file missionscript.h.

Constructor & Destructor Documentation

AIFlyToJumppoint::AIFlyToJumppoint ( Unit jumppoint,
float  fly_speed,
bool  aft
)

Definition at line 144 of file missionscript.cpp.

References varInst::bool_val, AImissionScript::classid, varInst::float_val, Mission::lookupClassVariable(), mission, AImissionScript::modulename, varInst::object, and varInst::objectname.

144  : AImissionScript( "ai_flyto_jumppoint" )
145 {
146  varInst *vi_speed = mission->lookupClassVariable( modulename, "fly_speed", classid );
147  vi_speed->float_val = fly_speed;
148
149  varInst *vi_aft = mission->lookupClassVariable( modulename, "afterburner", classid );
150  vi_aft->bool_val = aft;
151
152  varInst *vi_unit = mission->lookupClassVariable( modulename, "jumppoint_unit", classid );
153  vi_unit->objectname = "unit";
154  vi_unit->object = jumppoint_unit;
155 }

The documentation for this class was generated from the following files:
