Opcode::VolumeCollider Class Reference

#include <Opcode.h>

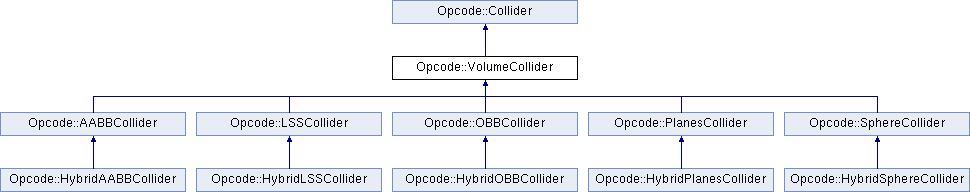

Inheritance diagram for Opcode::VolumeCollider:

Public Member Functions
	VolumeCollider ()
virtual	~VolumeCollider ()=0
inline_ udword	GetNbTouchedPrimitives () const
inline_ const udword *	GetTouchedPrimitives () const
inline_ udword	GetNbVolumeBVTests () const
inline_ udword	GetNbVolumePrimTests () const
	override (Collider) const char *ValidateSettings()
Public Member Functions inherited from Opcode::Collider
	Collider ()
virtual	~Collider ()
inline_ BOOL	GetContactStatus () const
inline_ BOOL	FirstContactEnabled () const
inline_ BOOL	TemporalCoherenceEnabled () const
inline_ BOOL	ContactFound () const
inline_ BOOL	TemporalHit () const
inline_ BOOL	SkipPrimitiveTests () const
inline_ void	SetFirstContact (bool flag)
inline_ void	SetTemporalCoherence (bool flag)
inline_ void	SetPrimitiveTests (bool flag)
virtual const char *	ValidateSettings ()=0

Protected Member Functions
void	_Dump (const AABBCollisionNode *node)
void	_Dump (const AABBNoLeafNode *node)
void	_Dump (const AABBQuantizedNode *node)
void	_Dump (const AABBQuantizedNoLeafNode *node)
	override (Collider) inline_ void InitQuery()
inline_ BOOL	IsCacheValid (VolumeCache &cache)
Protected Member Functions inherited from Opcode::Collider
inline_ BOOL	Setup (const BaseModel *model)
virtual inline_ void	InitQuery ()

Protected Attributes
Container *	mTouchedPrimitives
	List of touched primitives. More...
Point	mCenterCoeff
Point	mExtentsCoeff
udword	mNbVolumeBVTests
	Number of Volume-BV tests. More...
udword	mNbVolumePrimTests
	Number of Volume-Primitive tests. More...
Protected Attributes inherited from Opcode::Collider
udword	mFlags
	Bit flags. More...
const BaseModel *	mCurrentModel
	Current model for collision query (owner of touched faces) More...
const MeshInterface *	mIMesh
	User-defined mesh interface. More...

Detailed Description

Definition at line 33 of file Opcode.h.

Constructor & Destructor Documentation

VolumeCollider::VolumeCollider

(

)

Constructor.

Definition at line 40 of file OPC_VolumeCollider.cpp.

                               :
    mTouchedPrimitives  (null),
    mNbVolumeBVTests    (0),
    mNbVolumePrimTests  (0)
{
}

VolumeCollider::~VolumeCollider ( )

pure virtual

Destructor.

Definition at line 52 of file OPC_VolumeCollider.cpp.

{
    mTouchedPrimitives = null;
}

Member Function Documentation

void Opcode::VolumeCollider::_Dump ( const AABBCollisionNode *  node)

protected

void Opcode::VolumeCollider::_Dump ( const AABBNoLeafNode *  node)

protected

void Opcode::VolumeCollider::_Dump ( const AABBQuantizedNode *  node)

protected

void Opcode::VolumeCollider::_Dump ( const AABBQuantizedNoLeafNode *  node)

protected

inline_ udword Opcode::VolumeCollider::GetNbTouchedPrimitives ( ) const

inline

Gets the number of touched primitives after a collision query.

See Also

GetContactStatus()

GetTouchedPrimitives()

Returns

the number of touched primitives

Definition at line 50 of file Opcode.h.

inline_ udword Opcode::VolumeCollider::GetNbVolumeBVTests ( ) const

inline

Stats: gets the number of Volume-BV overlap tests after a collision query.

See Also

GetNbVolumePrimTests()

Returns

the number of Volume-BV tests performed during last query

Definition at line 71 of file Opcode.h.

inline_ udword Opcode::VolumeCollider::GetNbVolumePrimTests ( ) const

inline

Stats: gets the number of Volume-Triangle overlap tests after a collision query.

See Also

GetNbVolumeBVTests()

Returns

the number of Volume-Triangle tests performed during last query

Definition at line 80 of file Opcode.h.

inline_ const udword* Opcode::VolumeCollider::GetTouchedPrimitives ( ) const

inline

Gets the list of touched primitives after a collision query.

See Also

GetContactStatus()

GetNbTouchedPrimitives()

Returns

the list of touched primitives (primitive indices)

Definition at line 60 of file Opcode.h.

inline_ BOOL Opcode::VolumeCollider::IsCacheValid ( VolumeCache &  cache)

inlineprotected

Definition at line 121 of file Opcode.h.

Opcode::VolumeCollider::override

(

Collider

)

const

Validates current settings. You should call this method after all the settings / callbacks have been defined for a collider.

Returns

null if everything is ok, else a string describing the problem

Opcode::VolumeCollider::override ( Collider  )

inlineprotected

Initializes a query

Definition at line 113 of file Opcode.h.

Member Data Documentation

Point Opcode::VolumeCollider::mCenterCoeff

protected

Definition at line 97 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

Point Opcode::VolumeCollider::mExtentsCoeff

protected

Definition at line 98 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

udword Opcode::VolumeCollider::mNbVolumeBVTests

protected

Number of Volume-BV tests.

Definition at line 100 of file Opcode.h.

udword Opcode::VolumeCollider::mNbVolumePrimTests

protected

Number of Volume-Primitive tests.

Definition at line 101 of file Opcode.h.

Container* Opcode::VolumeCollider::mTouchedPrimitives

protected

List of touched primitives.

Definition at line 94 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

---

The documentation for this class was generated from the following files:

• src/cmd/collide2/OPC_VolumeCollider.h
• src/cmd/collide2/OPC_VolumeCollider.cpp
