Opcode::Collider Class Reference

#include <Opcode.h>

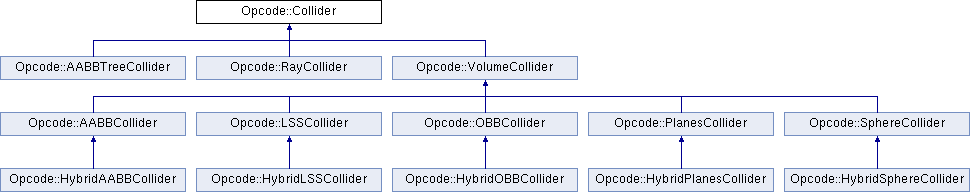

Inheritance diagram for Opcode::Collider:

Public Member Functions
	Collider ()
virtual	~Collider ()
inline_ BOOL	GetContactStatus () const
inline_ BOOL	FirstContactEnabled () const
inline_ BOOL	TemporalCoherenceEnabled () const
inline_ BOOL	ContactFound () const
inline_ BOOL	TemporalHit () const
inline_ BOOL	SkipPrimitiveTests () const
inline_ void	SetFirstContact (bool flag)
inline_ void	SetTemporalCoherence (bool flag)
inline_ void	SetPrimitiveTests (bool flag)
virtual const char *	ValidateSettings ()=0

Protected Member Functions
inline_ BOOL	Setup (const BaseModel *model)
virtual inline_ void	InitQuery ()

Protected Attributes
udword	mFlags
	Bit flags. More...
const BaseModel *	mCurrentModel
	Current model for collision query (owner of touched faces) More...
const MeshInterface *	mIMesh
	User-defined mesh interface. More...

Detailed Description

Definition at line 38 of file Opcode.h.

Constructor & Destructor Documentation

Collider::Collider

(

)

Constructor.

Definition at line 40 of file OPC_Collider.cpp.

                   :
    mFlags          (0),
    mCurrentModel   (null),
    mIMesh          (null)
{
}

Collider::~Collider ( )

virtual

Destructor.

Definition at line 52 of file OPC_Collider.cpp.

{
}

Member Function Documentation

inline_ BOOL Opcode::Collider::ContactFound ( ) const

inline

Checks a first contact has already been found.

Returns

true if a first contact has been found and we can stop a query

Definition at line 77 of file Opcode.h.

inline_ BOOL Opcode::Collider::FirstContactEnabled ( ) const

inline

Gets the "first contact" mode.

Returns

true if "first contact" mode is on

Definition at line 61 of file Opcode.h.

Referenced by csOPCODECollider::GetOneHitOnly().

inline_ BOOL Opcode::Collider::GetContactStatus ( ) const

inline

Gets the last collision status after a collision query.

Returns

true if a collision occured

Definition at line 53 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

virtual inline_ void Opcode::Collider::InitQuery ( )

inlineprotectedvirtual

Initializes a query

Definition at line 174 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

inline_ void Opcode::Collider::SetFirstContact ( bool  flag)

inline

Reports all contacts (false) or first contact only (true)

Parameters

flag	[in] true for first contact, false for all contacts

See Also

SetTemporalCoherence(bool flag)

ValidateSettings()

Definition at line 105 of file Opcode.h.

Referenced by Opcode::Picking(), Opcode::SetupAllHits(), Opcode::SetupClosestHit(), Opcode::SetupInOutTest(), and Opcode::SetupShadowFeeler().

inline_ void Opcode::Collider::SetPrimitiveTests ( bool  flag)

inline

Enable/disable primitive tests.

Parameters

flag	[in] true to enable primitive tests, false to discard them

Definition at line 131 of file Opcode.h.

inline_ void Opcode::Collider::SetTemporalCoherence ( bool  flag)

inline

Enable/disable temporal coherence.

Parameters

flag	[in] true to enable temporal coherence, false to discard it

See Also

SetFirstContact(bool flag)

ValidateSettings()

Definition at line 119 of file Opcode.h.

Referenced by Opcode::Picking().

inline_ BOOL Opcode::Collider::Setup ( const BaseModel *  model)

inlineprotected

Setups current collision model

Parameters

model

[in] current collision model

Returns

TRUE if success

Definition at line 159 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

inline_ BOOL Opcode::Collider::SkipPrimitiveTests ( ) const

inline

Checks primitive tests are enabled;

Returns

true if primitive tests must be skipped

Definition at line 93 of file Opcode.h.

inline_ BOOL Opcode::Collider::TemporalCoherenceEnabled ( ) const

inline

Gets the temporal coherence mode.

Returns

true if temporal coherence is on

Definition at line 69 of file Opcode.h.

inline_ BOOL Opcode::Collider::TemporalHit ( ) const

inline

Checks there's been an early exit due to temporal coherence;

Returns

true if a temporal hit has occured

Definition at line 85 of file Opcode.h.

virtual const char* Opcode::Collider::ValidateSettings ( )

pure virtual

Validates current settings. You should call this method after all the settings / callbacks have been defined for a collider.

Returns

null if everything is ok, else a string describing the problem

Member Data Documentation

const BaseModel* Opcode::Collider::mCurrentModel

protected

Current model for collision query (owner of touched faces)

Definition at line 147 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

udword Opcode::Collider::mFlags

protected

Bit flags.

Definition at line 146 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

const MeshInterface* Opcode::Collider::mIMesh

protected

User-defined mesh interface.

Definition at line 149 of file Opcode.h.

Referenced by Opcode::HybridSphereCollider::Collide(), Opcode::HybridAABBCollider::Collide(), Opcode::HybridLSSCollider::Collide(), Opcode::HybridPlanesCollider::Collide(), and Opcode::HybridOBBCollider::Collide().

---

The documentation for this class was generated from the following files:

• src/cmd/collide2/OPC_Collider.h
• src/cmd/collide2/OPC_Collider.cpp
